Catalyst 6500 Series Wireless LAN Services Module Installation and Verification Note
Product number: WS-SVC-WLAN-1-K9
This document provides installation procedures for the Catalyst 6500 series Wireless LAN Services Module and contains these sections:
•
Preparing to Install the Wireless
LAN Services Module
•Installing the Wireless LAN
Services Module
•Removing the Wireless LAN Services
Module
•Obtaining Documentation and
Submitting a Service Request
Front Panel Description
The Wireless LAN Services Module front panel (Figure 1) includes a STATUS LED, a Federal Information Processing Standards (FIPS) LED, a SHUTDOWN button, and a CONSOLE port.

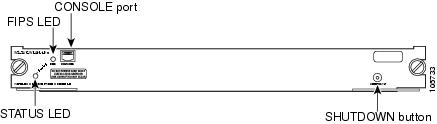

Figure 1 Wireless LAN Services Module Front Panel
These sections describe the Wireless LAN Services Module front panel:
CONSOLE Port
The CONSOLE port is used for the initial configuration of the Wireless LAN Services Module.
Note The initial Wireless LAN Services Module configuration
must be made through a direct connection to the CONSOLE port. After
the initial configurations, you can make an SSH or Telnet
connection to the module to further configure the module.
STATUS LED
The STATUS LED indicates the operating states of the module. Table 1 describes the STATUS LED operation.
Table 1 STATUS LED Description
FIPS LED
The FIPS LED currently is not used.
SHUTDOWN Button
Do not remove the Wireless LAN Services Module from
the switch until the module has shut down completely and the STATUS
LED is orange. You can damage the module if you remove it from the
switch before it completely shuts down. To avoid corrupting the Wireless LAN Services Module compact flash memory card, you must correctly shut down the Wireless LAN Services Module before you remove it from the chassis or disconnect the power. You can shut down the module by entering the hw-mod module mod shutdown command in privileged mode from the router CLI.
If the Wireless LAN Services Module fails to respond to this command, shut down the module by pressing the SHUTDOWN button on the front panel.
The shutdown procedure may require several minutes. The STATUS LED turns off when the module shuts down.
See the "Removing the Wireless LAN Services Module" section for detailed procedures on shutting down the Wireless LAN Services Module.
System Requirements
Before you install the Wireless LAN Services Module into the Catalyst 6500 series switch, refer to the Release Notes for Catalyst 6500 Series Wireless LAN Mobility Module to make sure that the switch meets the hardware and software requirements.
Safety Overview
Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each warning statement.
 |
Warning Only trained and qualified personnel should be allowed
to install, replace, or service this equipment. Statement 1030
|
|
Warning Hazardous voltage or
energy is present on the backplane when the system is operating.
Use caution when servicing. Statement 1034
|
|
Warning Blank faceplates and cover panels serve three
important functions: they prevent exposure to hazardous voltages
and currents inside the chassis; they contain electromagnetic
interference (EMI) that might disrupt other equipment; and they
direct the flow of cooling air through the chassis. Do not operate
the system unless all cards, faceplates, front covers, and rear
covers are in place. Statement 1029
|
|
Warning This unit is intended for installation in restricted
access areas. A restricted access area can be accessed only through
the use of a special tool, lock and key, or other means of
security. Statement 1017
|
Preparing to Install the Wireless LAN Services Module
Note Before installing the Wireless LAN Services Module,
you must install the Catalyst 6500 series switch chassis and at
least one supervisor engine. For information on installing the
switch chassis, refer to the Catalyst 6500 Series Switch Installation Guide.
Before installing the Wireless LAN Services Module, make sure that the following items are available:
•Catalyst 6500 series switch chassis
•Management station that is available through a console
connection to perform configuration tasks
Required Tools
|
Warning Only trained and qualified personnel should be allowed
to install, replace, or service this equipment. Statement 1030
|
These tools are required to install the Wireless LAN Services Module into the Catalyst 6500 series switch:
•Flat-blade screwdriver
•Wrist strap or other grounding device
•Antistatic mat or antistatic foam
Installing the Wireless LAN Services Module
Note Before installing the Wireless LAN Services Module,
you must install the Catalyst 6500 series switch chassis and at
least one supervisor engine. For information on installing the
switch chassis, refer to the Catalyst 6500 Series Switch Installation Guide.
This section describes how to install the Wireless LAN Services Module into the Catalyst 6500 series switch.
Note All modules, including the supervisor engine (if you
have redundant supervisor engines), support hot swapping. You can
add, replace, or remove modules without interrupting the system
power or causing other software or interfaces to shut down. For
more information about hot-swapping modules, refer to the
Catalyst
6500 Series
Switch
Module
Installation Guide.
|
Warning During this procedure, wear grounding wrist straps to
avoid ESD damage to the card. Do not directly touch the backplane
with your hand or any metal tool, or you could shock yourself.
Statement 94
|
To install the Wireless LAN Services Module into the Catalyst 6500 series switch, perform these steps:
Step 1 Make sure that you take the necessary precautions to
prevent ESD damage.
Step 2 Choose a slot for the Wireless LAN Services Module.
See Figure 2 for the slot numbers on a
Catalyst 6500 series switch.
Figure 2 Slot Numbers on Catalyst 6500 Series Switches
Step 3 Check that there is enough clearance to accommodate
any interface equipment that you will be connecting directly to the
supervisor engine or switching module ports.
Note If possible, place switching modules between the empty
slots that contain only switching-module filler plates (Cisco part
number 800-00292-01).
|
Warning Blank faceplates and cover panels serve three
important functions: they prevent exposure to hazardous voltages
and currents inside the chassis; they contain electromagnetic
interference (EMI) that might disrupt other equipment; and they
direct the flow of cooling air through the chassis. Do not operate
the system unless all cards, faceplates, front covers, and rear
covers are in place. Statement 1029
|
Step 4 Loosen the captive installation screws that secure the
switching module filler plate (or an existing switching module) to
the desired slot.
Step 5 Remove the switching module filler plate (or an
existing switching module).
Step 6 Hold the handle of the Wireless LAN Services Module
with one hand, and place your other hand under the carrier support.
Do not touch the printed circuit boards or connector pins.
Step 7 Place the Wireless LAN Services Module in the slot.
Align the notch on the sides of the switching module carrier with
the groove in the slot. (See Figure 3.)
Step 8 Keep the Wireless LAN Services Module at a 90-degree
angle to the backplane and carefully slide the Wireless LAN
Services Module into the slot until the switching module faceplate
contacts the ejector levers. (See Figure
4.)
Step 9 Using the thumb and forefinger of each hand,
simultaneously push in the left and right levers to fully seat the
Wireless LAN Services Module in the backplane connector.
Always use the ejector levers when installing or
removing the Wireless LAN Services Module. A module that is
partially seated in the backplane will cause the system to halt and
subsequently crash. Note If you perform a hot swap, the console displays the
message "Module n has been inserted." This message does not
appear if you are connected to the Catalyst 6500 series switch
through a Telnet session.
Step 10 Use a screwdriver to tighten the captive installation
screws on the left and right ends of the Wireless LAN Services
Module.

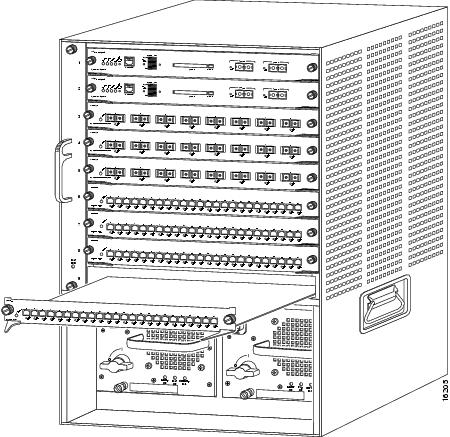

Figure 3 Installing Modules in the Catalyst 6500 Series Switch

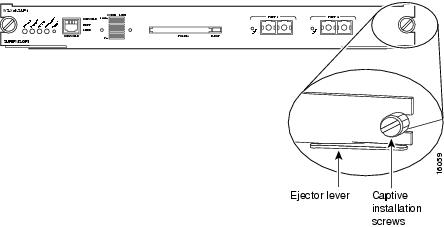

Figure 4 Ejector Levers and Captive Installation Screws
This completes the Wireless LAN Services Module installation procedure.
Verifying the Installation
When you install the Wireless LAN Services Module into the Catalyst 6500 series switch, the module goes through a boot sequence that requires no intervention. At the successful conclusion of the boot sequence, the green STATUS LED will light and remain on. If the STATUS LED is not green, or is a different color, see Table 1 to determine the status of the module.
Enter the show module command to verify the installation:
Router# show module
Mod Ports Card Type Model Serial No.
--- ----- -------------------------------------- ------------------ -----------
1 16 SFM-capable 16 port 10/100/1000mb RJ45 WS-X6516-GE-TX SAL064893ST
2 6 Firewall Module WS-SVC-FWM-1 SAD0707017D
4 8 Intrusion Detection System WS-SVC-IDSM-2 SAD072001DF
5 1 Wireless LAN Module WS-SVC-WLAN-1-K9 SAD074901K2
5 1 Wireless LAN Module WS-SVC-WLAN-1-K9 SAD074901K2
6 2 Supervisor Engine 720 (Active) WS-SUP720-BASE SAD07260096
...
Mod Online Diag Status
--- -------------------
1 Pass
2 Pass
4 Pass
6 Pass
Router#
Removing the Wireless LAN Services Module
This section describes how to remove the Wireless LAN Services Module from the Catalyst 6500 series switch.
Do not remove the Wireless LAN Services Module from
the switch until the module has shut down completely and the STATUS
LED is orange or off. You can damage the module if you remove it
from the switch before it completely shuts down. |
Warning During this procedure, wear grounding wrist straps to
avoid ESD damage to the card. Do not directly touch the backplane
with your hand or any metal tool, or you could shock yourself.
Statement 94
|
To remove the Wireless LAN Services Module, perform these steps:
Step 1 Shut down the module by one of these methods:
•In privileged mode from the router prompt, enter the
hw-mod
module mod
shutdown command.
Note If you enter this command to shut down the module, you
will have to enter the following commands in config mode to restart
(power down, and then power up) the module:
Router#
no power
enable module mod
Router#
power enable
module mod
•If the module does not respond to any commands, press
the SHUTDOWN button located on the front panel of the module.
Note Shutdown may require several minutes.
Step 2 Verify that the Wireless LAN Mobility Module shuts
down. Do not remove the module from the switch until the STATUS LED
is off or orange.
Step 3 Use a screwdriver to loosen the captive installation
screws at the left and right sides of the module.
Step 4 Grasp the left and right ejector levers.
Simultaneously, pull the left lever to the left and the right lever
to the right to release the module from the backplane connector.
Step 5 As you pull the module out of the slot, place one hand
under the carrier to support it. Avoid touching the module itself.
Step 6 Carefully pull the module straight out of the slot,
keeping one hand under the carrier to guide it. Keep the module at
a 90-degree orientation to the backplane (horizontal to the floor).
Step 7 Place the removed module on an antistatic mat or
antistatic foam.
|
Warning Blank faceplates and cover panels serve three
important functions: they prevent exposure to hazardous voltages
and currents inside the chassis; they contain electromagnetic
interference (EMI) that might disrupt other equipment; and they
direct the flow of cooling air through the chassis. Do not operate
the system unless all cards, faceplates, front covers, and rear
covers are in place. Statement 1029
|
Step 8 If the slot is to remain empty, install a module
filler plate to keep dust out of the chassis and to maintain proper
airflow through the module compartment.
Related Documentation
For more detailed installation and configuration information, refer to the following publications:
•Release Notes for Catalyst 6500 Series Wireless LAN Services Module
•Catalyst 6500 Series Switch Installation Guide
•Catalyst 6500 Series Switch Module Installation Guide
•Catalyst 6500 Series Switch Cisco IOS Software Configuration Guide
•Catalyst 6500 Series Switch Cisco IOS Command Reference
•Regulatory Compliance and Safety Information for the Catalyst 6500 Series Switches
•Site Preparation and Safety Guide
