Product Numbers: WS-C6597= and WS-6513-RACK-MNT=

This installation note contains instructions on how to install the Catalyst 6500 series switches in a telco-style rack using the two center rack-mount kits.

Note Use these kits in place of the rack-mount brackets shipped installed on the chassis, and only when you are center rack-mounting a Catalyst switch in a telco-style rack.

Contents

This installation note contains the following sections:

•Overview

•Safety

•Tools Required

•Center Rack-Mounting a Catalyst 6506 and Catalyst 6506-E Switch Chassis

•Center Rack-Mounting a Catalyst 6509 and Catalyst 6509-E Switch Chassis

•Center Rack-Mounting a Catalyst 6513 Switch Chassis

•Obtaining Documentation and Submitting a Service Request

Overview

The two center rack-mount kits and the Catalyst switch chassis they support are listed in Table 1.

Note The center rack-mount kits are not supported on the Catalyst 6503, Catalyst 6503-E, and Catalyst 6509-NEB, and Catalyst 6509-NEB-A switch chassis.

The center rack-mount kits are installed differently depending on the chassis. Table 2 lists the switch chassis and summarizes how the center rack-mount kits are installed.

Safety

Safety warnings appear throughout this publication in procedures that may harm you if performed incorrectly. A warning symbol precedes each warning statement.

Statement 1071—Warning Definition

Warning	IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. SAVE THESE INSTRUCTIONS
Waarschuwing	BELANGRIJKE VEILIGHEIDSINSTRUCTIES Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen. BEWAAR DEZE INSTRUCTIES
Varoitus	TÄRKEITÄ TURVALLISUUSOHJEITA Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla. SÄILYTÄ NÄMÄ OHJEET
Attention	IMPORTANTES INFORMATIONS DE SÉCURITÉ Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement. CONSERVEZ CES INFORMATIONS
Warnung	WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF.
Avvertenza	IMPORTANTI ISTRUZIONI SULLA SICUREZZA Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento. CONSERVARE QUESTE ISTRUZIONI
Advarsel	VIKTIGE SIKKERHETSINSTRUKSJONER Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten. TA VARE PÅ DISSE INSTRUKSJONENE
Aviso	INSTRUÇÕES IMPORTANTES DE SEGURANÇA Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo. GUARDE ESTAS INSTRUÇÕES
¡Advertencia!	INSTRUCCIONES IMPORTANTES DE SEGURIDAD Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo. GUARDE ESTAS INSTRUCCIONES
Varning!	VIKTIGA SÄKERHETSANVISNINGAR Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning. SPARA DESSA ANVISNINGAR
Aviso	INSTRUÇÕES IMPORTANTES DE SEGURANÇA Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo. GUARDE ESTAS INSTRUÇÕES
Advarsel	VIGTIGE SIKKERHEDSANVISNINGER Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed. GEM DISSE ANVISNINGER

7

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: •This unit should be mounted at the bottom of the rack if it is the only unit in the rack. •When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack. •If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Statement 1006

Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030

Tools Required

You will need the following tools to install the center rack-mount kits on your 6-, 9-, or 13-slot chassis. If you need additional parts or assistance, contact your technical support representative.

•Number 1 Phillips screwdriver for the M4 screws.

•Number 2 Phillips screwdriver for the 10-32 and 12-24 screws.

•Tape measure for leveling the rack-mount kit brackets and the chassis (optional).

•Level for leveling the rack-mount kit brackets and the chassis (recommended).

9

Center Rack-Mounting a Catalyst 6506 and Catalyst 6506-E Switch Chassis

This section describes how to install the Catalyst 6506 and Catalyst 6506-E switch chassis in a telco-style rack using the center rack-mount kit (WS-C6597=). For the Catalyst 6506 and Catalyst 6506-E switch chassis, you need to install the two center rack-mount kit brackets to the bottom sides of the chassis.

Note Use this kit in place of the rack-mount brackets shipped installed on the chassis, and only when you are center rack-mounting a Catalyst switch in a telco-style rack.

Note To make handling the chassis easier, you should remove all modules and power supplies before you install the chassis in the rack. The illustrations that show the modules and power supplies in the following procedure are for reference purposes only.

To install the Catalyst 6506 or Catalyst 6506-E switch chassis in a telco-style rack using the WS-C6597 center rack-mount kit, perform these steps:

Step 1 Remove the two brackets and the bag of screws from the packaging.

Step 2 Attach the two brackets to the sides of the chassis with 4 M4 screws on each side. (See Figure 1.)

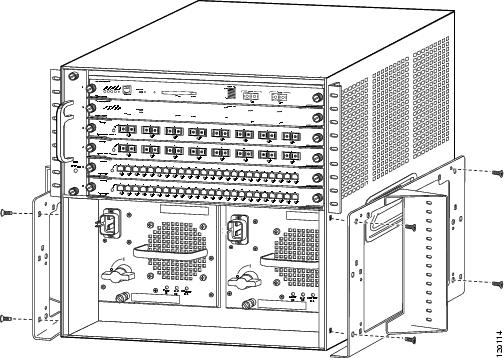

Figure 1 Attaching the Center Rack-Mount Kit Brackets to the Catalyst 6506 and Catalyst 6506-E Switch Chassis

Step 3 Position the chassis in the rack and secure the center rack-mount kit brackets to the telco-style rack with 8 12-24 x 3/4 inch or 10-32 x 3/4 inch screws (4 on each side.). (See Figure 2.) Use a level or measuring tape to verify that the chassis is level in the rack.

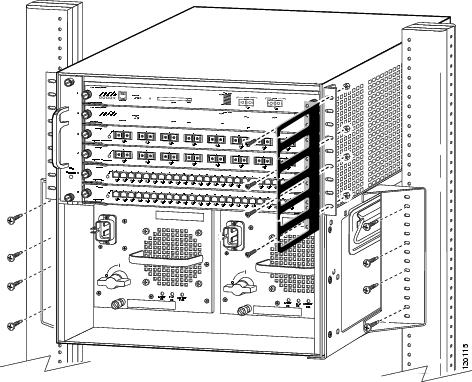

Figure 2 Installing the Catalyst 6506 and Catalyst 6506-E Switch Chassis in a Telco-Style Rack

Center Rack-Mounting a Catalyst 6509 and Catalyst 6509-E Switch Chassis

This section describes how to rack-mount a Catalyst 6509 and Catalyst 6509-E switch chassis in a telco-style rack using the WS-C6597 center rack-mount kit. For the Catalyst 6509 and Catalyst 6509-E switch chassis, you need to install the two center rack-mount kit brackets to the bottom sides of the chassis.

Note Use this kit in place of the rack-mount brackets shipped installed on the chassis, and only when you are center rack-mounting a Catalyst switch in a telco-style rack.

Note To make handling the chassis easier, you should remove all modules and power supplies before you install the chassis in the rack. The illustrations that show the modules and power supplies in the following procedure are for reference purposes only.

To install the Catalyst 6509 and Catalyst 6509-E switch chassis in a telco-style rack using the WS-C6597 center rack-mount kit, perform these steps:

Step 1 Remove the two brackets and the bag of screws from the packaging.

Step 2 Attach the two center rack-mount kit brackets to the sides of the chassis with 4 M4 screws on each side. (See Figure 3.)

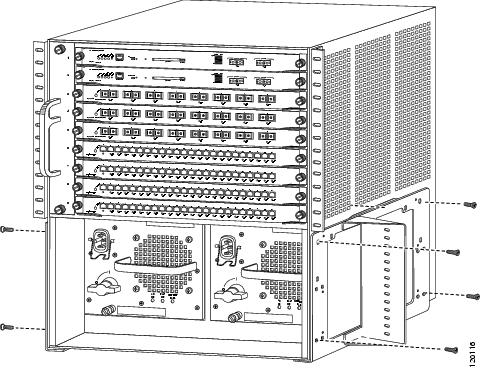

Figure 3 Attaching the Center Rack-Mount Kit Brackets to the Catalyst 6509 and Catalyst 6509-E Switch Chassis

Step 3 Position the chassis in the rack and secure the center rack-mount kit brackets to the telco-style rack with 8 12-24 x 3/4 inch or 10-32 x 3/4 inch screws (4 on each side). (See Figure 4.) Use a level or measuring tape to verify that the chassis is level in the rack.

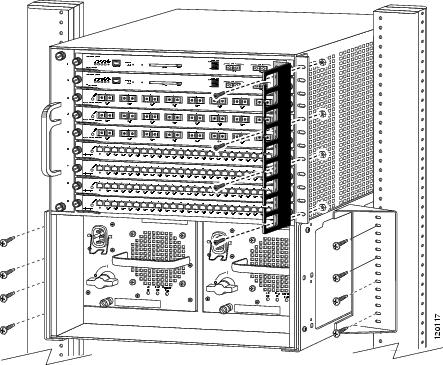

Figure 4 Installing the Catalyst 6509 and Catalyst 6509-E Switch Chassis in a Telco-Style Rack

Center Rack-Mounting a Catalyst 6513 Switch Chassis

This section describes how to install the Catalyst 6513 chassis in a telco-style rack using the WS-6513-RACK-MNT center rack-mount kit. In this procedure, the two lower brackets are used as a shelf and are not attached to the chassis. The two upper brackets are attached to the chassis and are secured to the telco-style rack.

Note To make handling the chassis easier, you should remove all modules and power supplies before you install the chassis in the rack. The illustrations that show the modules and power supplies in the following procedure are for reference purposes only.

To install the Catalyst 6513 chassis in a telco-style rack using the WS-6513-RACK-MNT center rack-mount kit, perform these steps:

Step 1 Remove the four brackets and the bag of screws from the packaging.

Step 2 Position and install the two lower brackets in the rack using 8 10-32 or 12-24 screws (4 on each side). Use the level and tape measure to position the brackets so that they are level. (See Figure 5.)

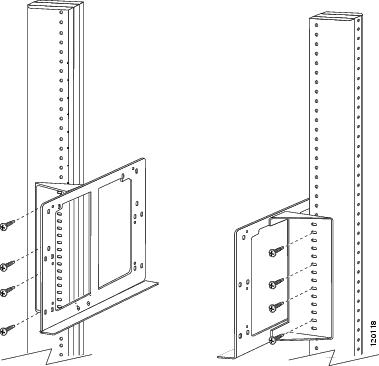

Figure 5 Attaching the Center Rack-Mount Kit Brackets to the Telco-Style Rack

Step 3 Attach the large L-brackets to the sides of the chassis using 5 M4 x 8 mm screws on each side. (See Figure 6.)

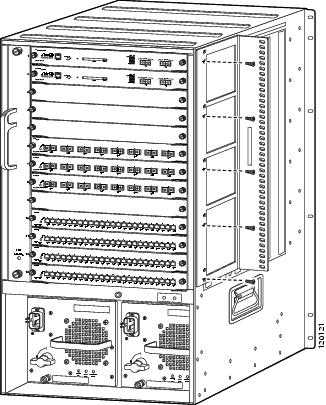

Figure 6 Attaching the Upper Brackets to the Catalyst 6513 Switch Chassis

Step 4 Lift the chassis and position it in front of the two brackets attached to the rack. Slide the chassis into the rack so that the two L-brackets are in contact with the rack.

Step 5 Secure the chassis to the rack with 10 10-32 or 12-24 screws (5 on each side). (See Figure 7.)

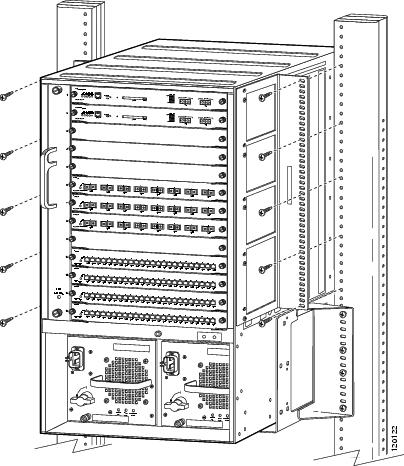

Figure 7 Securing the Catalyst 6513 Switch Chassis in the Telco-Style Rack

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.

This document is to be used in conjunction with the installation documentation that accompanied your product.
