Catalyst Family Inline Power Patch Panel Installation and Verification Note
Part Number: WS-PWR-PANEL
This document describes the Catalyst family inline-power patch panel and includes rack-mounting and cabling procedures.
The inline-power patch panel will work with any Cisco 10/100 Mbps switching product capable of supporting IP telephones.
Contents
This document consists of these sections:
•
Installing the Inline-Power Patch
Panel
•Specifications and Agency
Approvals
•Obtaining Documentation and
Submitting a Service Request
Overview
Typically, LAN-based IP telephones use external power converters located at or near the desktop. The inline-power patch panel eliminates the need for external power sources; it is a standalone chassis that can be co-located with the Catalyst switch to provide -48 VDC power directly to the telephone through existing Catalyst family 10/100BaseTX switching modules. When used with an uninterruptible power supply (UPS), the inline-power patch panel can provide power to the telephone even in a power failure.
The inline-power patch panel has 48 RJ-45 input ports and 48 RJ-45 output ports (see Figure 1). There are two RJ-45 connectors per port for a total of 48 ports. Each input connector is internally connected to a corresponding output connector (input connector 1 is connected to output connector 1, and so on).
The RJ-45 ports serve as the physical network interfaces to the inline-power patch panel. The lower bank of ports provide 10/100-Mbps connection to the switch through RJ-45 connector pins 1, 2, 3, and 6. The top bank of ports provide -48 VDC power to the IP telephones through RJ-45 connector pins 4, 5, 7, and 8, in addition to transparently passing 10/100 Mbps data traffic on pins 1, 2, 3, and 6.
Front Panel Description
This section describes the front-panel features of the inline-power patch panel:
•48 RJ-45 client ports
for connecting to IP telephones
•48 RJ-45 switch ports
for connecting to 10/100BaseTX switch ports
•Unit status LED (see Table 1)
•Port status LED (see Table 2)
•AC-input connector
•ESD receptacle

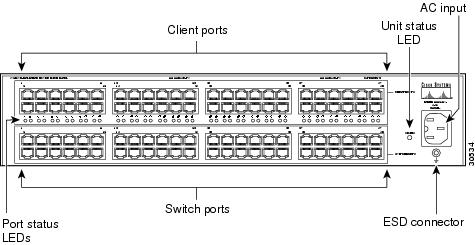

Figure 1 Inline Power Patch Panel Front Panel
Table 1 Unit Status LED Description
|
Color
|
Description
|
|---|---|
|
Green |
Power successfully applied to all ports. |
|
Red |
Power problem on one or more ports. |
|
Off |
No AC-input power to inline-power patch panel. |
Table 2 Port Status LED Description
|
Color
|
Description
|
|---|---|
|
Green |
Power successfully applied to port. |
|
Flashing Green and Amber |
Power problem on the port. |
|
Amber |
Power not applied to the port. |
|
Off |
No AC-input power to inline-power patch panel. |
Safety Overview
Safety warnings appear throughout this note in procedures that, if performed incorrectly, might harm you. A warning symbol precedes each warning statement. This section describes the warning symbol used in this note.
Installing the Inline-Power Patch Panel
This section provides rack-mounting instructions for the inline-power patch panel.
Note This unit requires 3.5 inches (8.9 cm) of
rack-mounting space.
A rack-mount kit is included for mounting the inline-power patch panel in a standard 19-inch (48.3 cm) equipment rack with two unobstructed outer posts, with a minimum depth (between the front and rear mounting posts) of 19.25 inches (48.9 cm) and a maximum depth of 32 inches (81.3 cm). This kit is not suitable for racks with obstructions (such as a power strip) that could impair access to the inline-power patch panel.
 |
Warning Before you install, operate, or service the system,
read the Site Preparation and Safety Guide. This guide
contains important safety information you should know before
working with the system.
|
Required Tools
The following tools and equipment are required to install the chassis:
•Number 1, number 2 Phillips, or 3/16-inch flat-blade
screwdriver
•Antistatic mat or antistatic foam
•Your own electrostatic discharge (ESD) grounding strap
or the disposable ESD strap included with the system
Note For more information about ESD, refer to the
Site Preparation and Safety Guide.
The following tools and equipment are required to install the chassis in a rack:
•Rack-mount kit
•Tape measure and level
Rack-Mounting Procedure
Use this procedure to install the inline-power patch panel in a rack.
During this procedure, wear grounding wrist straps to
avoid ESD damage to the unit. Step 1 Prepare for installation as follows:
a. Place the inline-power patch panel on the floor or on
a sturdy table as close as possible to the rack. Leave enough
clearance to allow you to move around the chassis.
b. Use a tape measure to measure the depth of the rack.
Measure from the outside of the front mounting posts to the outside
of the rear mounting strip. The depth must be at least 19.25 inches
(48.9 cm) but not greater than 32 inches (81.3 cm).
c. Measure the space between the inner edges of the left
front and right front mounting posts to ensure that it is 17.75
inches (45.09 cm) wide. (The chassis is 17.5 inches [44 cm] wide
and must fit between the mounting posts.)
d. Open the rack-mount kit and see the component
checklist in Table 3 to verify that all
parts are included.
Table 3 Rack-Mount Kit Checklist
|
Quantity
|
Part Description
|
|---|---|
|
2 |
L brackets |
|
4 |
M4 Phillips pan-head screws |
|
4 |
12-24 x 3/4-inch Phillips binder-head screws |
Note Figure 2 illustrates how to
attach the front of the inline-power patch panel to the rack. You
can also attach the rear of the inline-power patch panel to the
rack, depending on the configuration of your rack.
Step 2 Note that the L brackets connect the chassis to the
rack. You can mount the L brackets to the front or rear mounting
holes of the chassis, depending on which end is in the front of the
rack.
Note Some equipment racks provide a power strip along the
length of one of the rear posts. If the rack has this feature,
consider the position of the strip when planning fastener points.
Before installing the L brackets on the chassis, determine whether
to install the chassis from the front or the rear of the rack.
Attach the left and right L brackets using the four M4 Phillips pan-head screws provided in the rack-mount kit (see Figure 2).

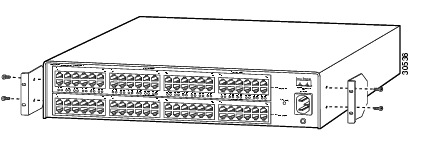

Figure 2 Attaching the L Brackets
Step 3 Install the chassis in the rack as follows:
a. Position the chassis in the rack as follows (see
Figure 3):
–If the chassis front panel is in the front of the
rack, insert the rear of the chassis between the mounting posts
–If the rear of the chassis is in the front of the
rack, insert the front of the chassis between the mounting posts
b. Align the mounting holes in the L bracket with the
mounting holes in the equipment rack.
c. Secure the chassis using six (three per side) 12-24 x
3/4-inch screws through the elongated holes in the L bracket and
into the threaded holes in the mounting post.
d. Use a tape measure and level to ensure that the
chassis is installed straight and level.

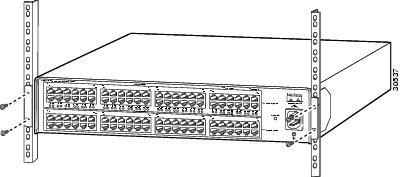

Figure 3 Installing the Inline-Power Patch Panel in the Rack
The inline-power patch panel powers up when you connect the chassis power cord.
Cabling
This section provides cabling guidelines for
connecting the inline-power patch panel to the
Catalyst switch and IP telephones.
|
Warning To avoid electric shock, do not connect safety
extra-low voltage (SELV) circuits to telephone-network voltage
(TNV) circuits. LAN ports contain SELV circuits, and WAN ports
contain TNV circuits. Some LAN and WAN ports both use RJ-45
connectors. Use caution when connecting cables.
|
Note The inline-power patch panel should only be used to
provide power to IP telephones, not 10/100 adapters. If the IP
telephone has a power source, you can attach the telephone directly
to the 10/100BaseTX port on the Catalyst switch. However, if the IP
telephone has a local power source, the inline-power patch panel
provides backup power when the local power fails or is removed.
Use these guidelines for your cabling connections (see Figure 4):
•Use standard Category 3 or Category 5 UTP cable.
•Connect a cable from the IP telephone to an RJ-45 port
in the top bank of ports.
•Connect a second cable to the corresponding RJ-45 port
in the lower bank of ports, and then connect the other end of this
cable to a 10/100BaseTX port on the Catalyst switch.

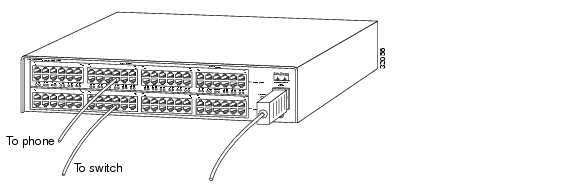

Figure 4 Connecting an IP Telephone to the Inline-Power Patch Panel
Verifying the Installation
•Before connecting the cables, verify that all the port
LEDs are amber and the status LED is green.
•After connecting the cables from the inline-power
patch panel to the Catalyst switch and IP telephone, verify that
the port LED and status LED are both green.
•Verify the link on the
switch through the inline-power patch panel to the
telephone.
•Verify that the IP telephone powers up and the screen
displays "Cisco Systems."
Specifications and Agency Approvals
See Table 4 for the technical specifications and agency approvals for the inline-power patch panel.
Table 4 Specifications and Agency Approvals
|
Item
|
Specification
|
|---|---|
|
Environmental
|
|
|
Temperature, ambient operating |
32°F (0°C) to 104°F (40°C) |
|
Temperature, ambient nonoperating and storage |
-40°F (-40°C) to 185°F (85°C) |
|
Humidity (RH), ambient (noncondensing) operating |
10% to 90% |
|
Humidity (RH), ambient (noncondensing) nonoperating and storage |
5% to 95% |
|
Altitude, operating and nonoperating |
Operating: -500 ft. (-152 m) to 10,000 ft. (3050 m) Nonoperating: -1000 ft. (-304 m) to 50,000 ft. (15,240 m) |
|
Physical Characteristics
|
|
|
Dimensions (H x W x D) |
3.4 in. x 17.2 in. x 12 in. |
|
Weight |
12 lb (5.4 kg) |
|
Power
|
|
|
AC-input voltage |
85 to 264 VAC |
|
AC frequency |
47 to 63 Hz |
|
AC current |
4A at 100 VAC 2A at 240 VAC |
|
Airflow
|
200 linear ft per minute, right to left |
|
System Power Dissipation
|
330W |
|
System KVA Rating
|
0.34 KVA |
|
System Heat Dissipation |
1125 BTU/hr (chassis and phones) 400 BTU/hr (chassis only) |
|
Agency Approvals Compliance
Safety |
CE= European Compliance UL = Underwriters Laboratory CSA = Canadian Standards Association EN = European Norm IEC = International Electrotechnical Commission AS/NZS = Standards Australia/Standards New Zealand FCC = Federal Communications Commission CFR = Code of Federal Regulations ICES = Interference-Causing Equipment Standard UTP = unshielded twisted-pair VCCI = Voluntary Control Council for Information Technology Equipment FTP = foil twisted-pair. |
